25″ Remote Control S7 Series

$32,990.00

Horsepower: 15 HP

Voltage: 3 phase, 200-240V, 45 Amp (max); or 3 phase, 400-480v, 30A

Tool Holder RPM: 400-1100 rpm

Weight: 1135 lbs

Grinding pressure: 463-624 lbs

Heads: 3 x 9-inch

Rotation: Left

Vacuum Hose Port: Camlock E250

12 months with 0% interest for qualified customers on equipment purchases of $10,000 or more.

Description

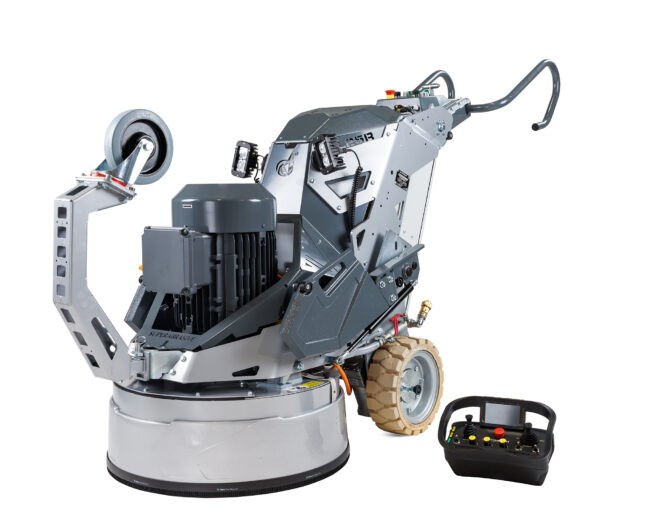

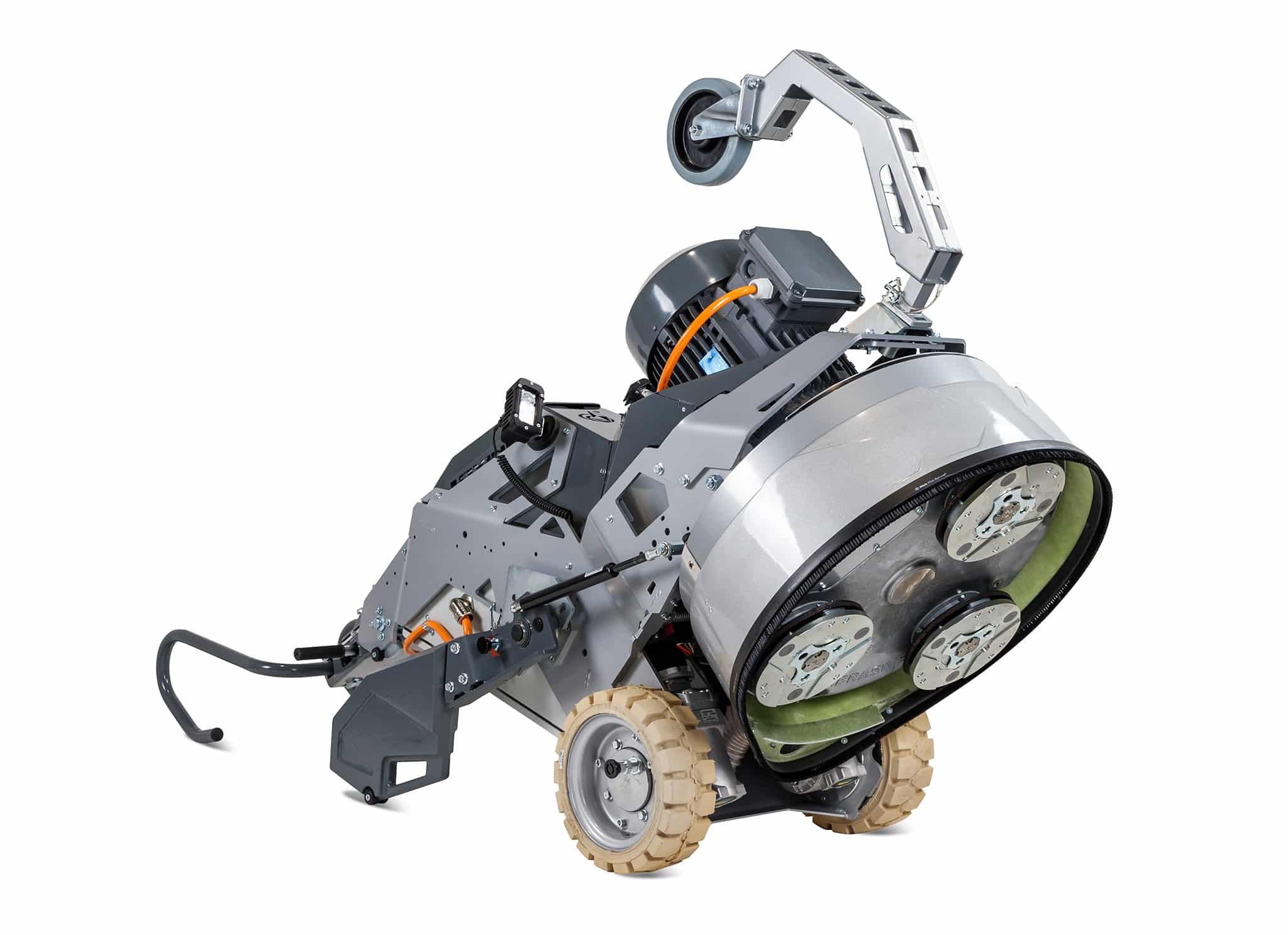

L25RS7 is our new 25″ Remote-Controlled Lavina S7 concrete grinder, featuring a new remote control to get the job done with ease. Contractors will love the effortless operation, improved productivity, and reduced maintenance, thanks to the sealed grinding head.

GRINDER FEATURES

  • User-friendly remote control provides smooth and easy operation with less operator fatigue.

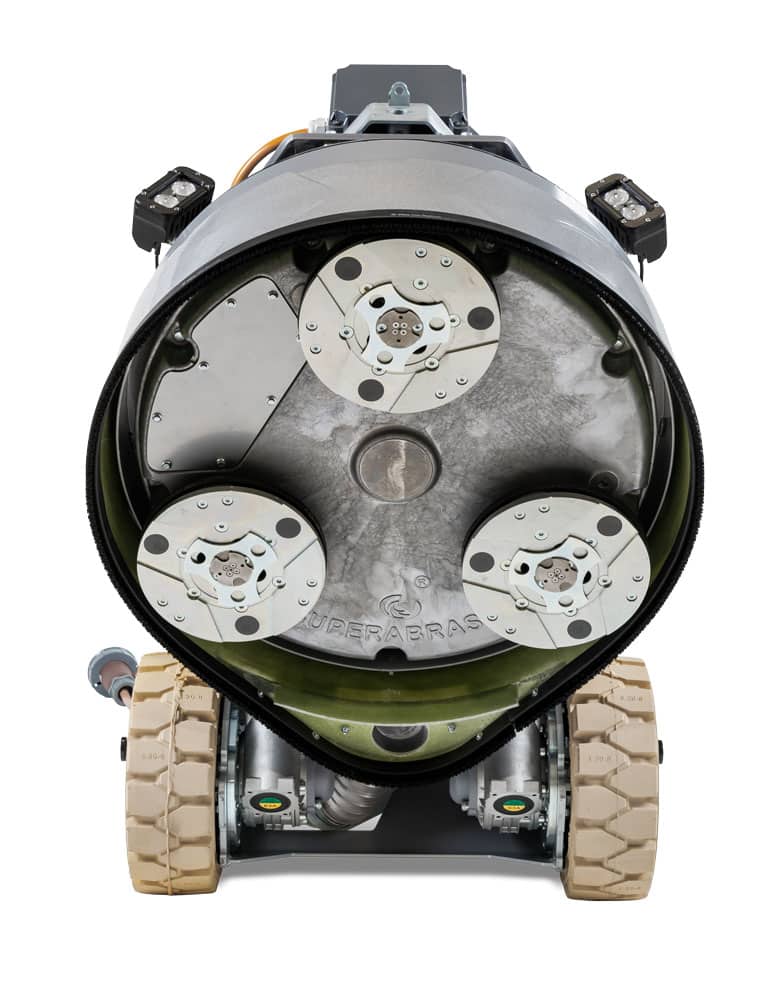

  • Sealed and dust-proof grinding head with upgraded internals and planetary drive.
  • Integrated adjustable weights for more head pressure during floor prep and grinding.
  • Three 9-inch grinding heads with left rotation (use the blue pcd and carbide scrapers).
  • Floating skirt with flexible brush for optimal dust containment.
  • Magnetic LED lights.
  • Heavy-duty wide rubber tires.
  • Pair with V25E or bigger Dust Extractor.
  • Transport (3rd) wheel is included for easy loading and maneuvering.

Remote Control Features

  • New remote device with 4.3” TFT LCD display, and removable Li-Ion battery with battery charger
  • M-Key removable magnetic power key switch
  • Controls include: emergency stop, two joysticks to control grinder movement, switches for engine rpm, direction of tool rotation, speed rpm, swing correction

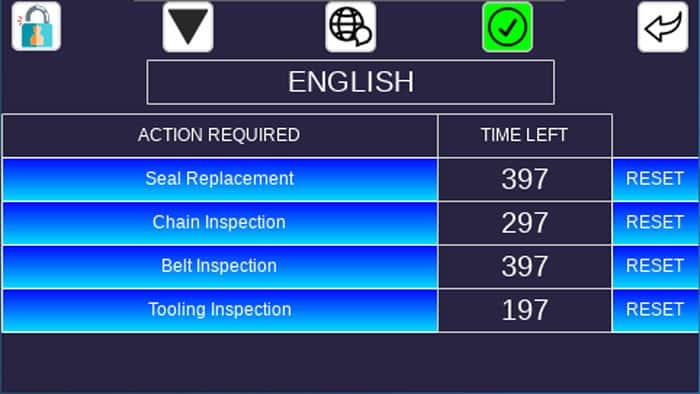

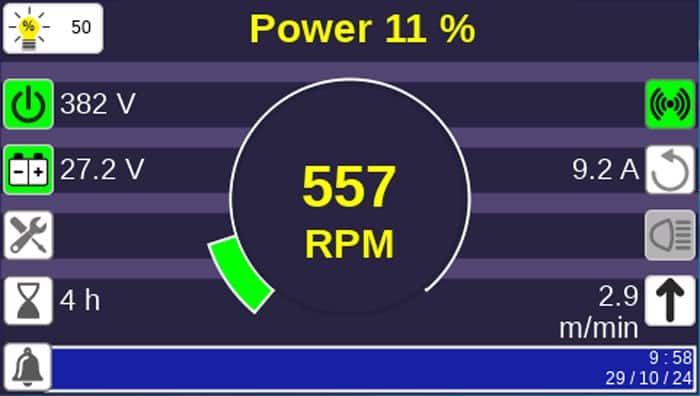

  • Main screen shows working parameters – power supply voltage, battery, engine load, RPMs, rotation direction of tools, maintenance alerts, hours, etc.
  • RC grinders can be used in manual mode (without RC or controller).



Downloads

L25RS7 Spec Sheet
