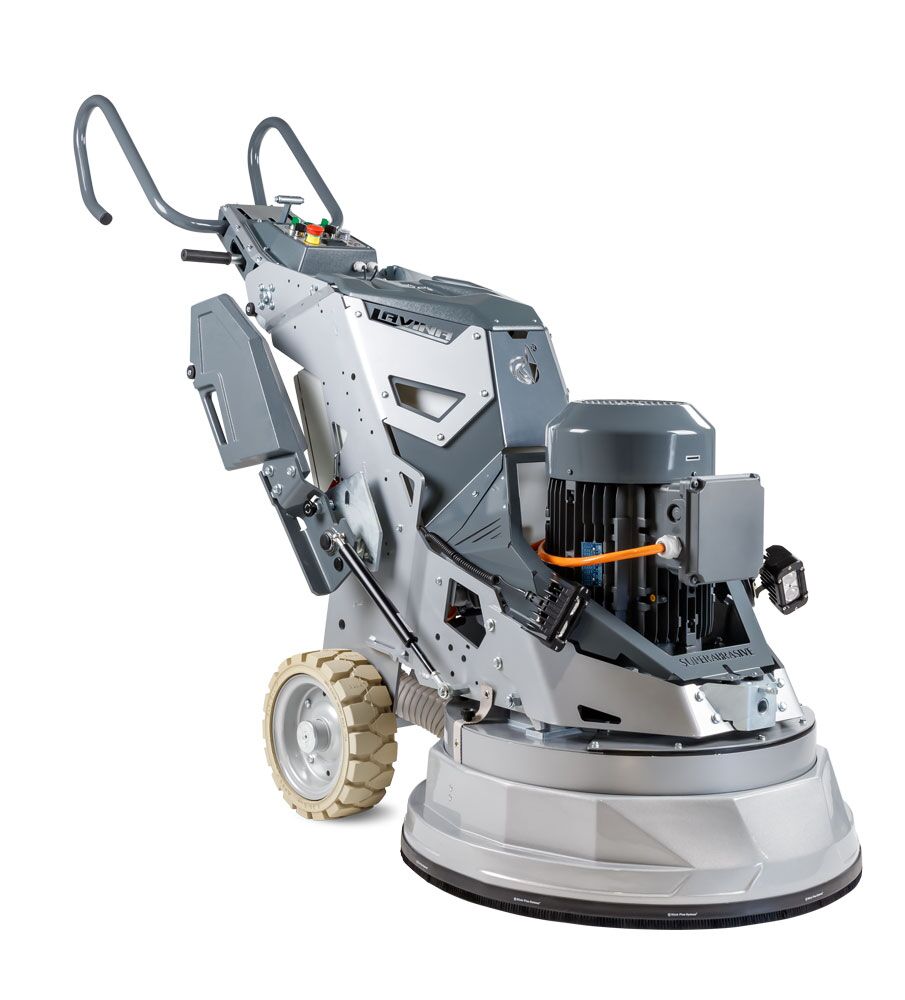

30″ S7 Series

$21,990.00

Motor Power: 15 hp

Voltage: 3 phase, 200-240V, 45 Amp max; or 3 phase, 400-480V, 30 Amp max

Weight: 998 lbs

Grinding Pressure: 460-619 lbs

Integrated weights with 4 positions

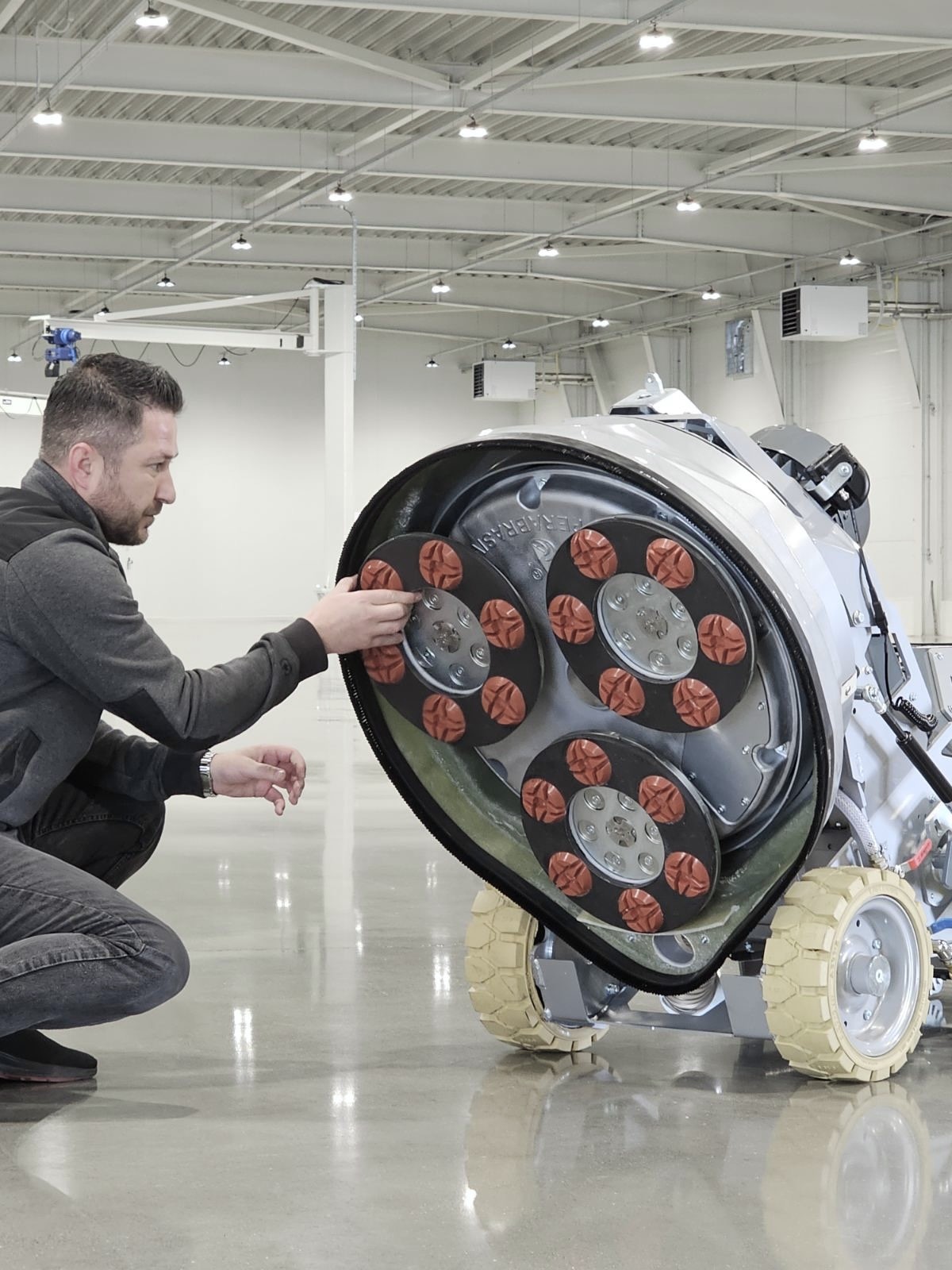

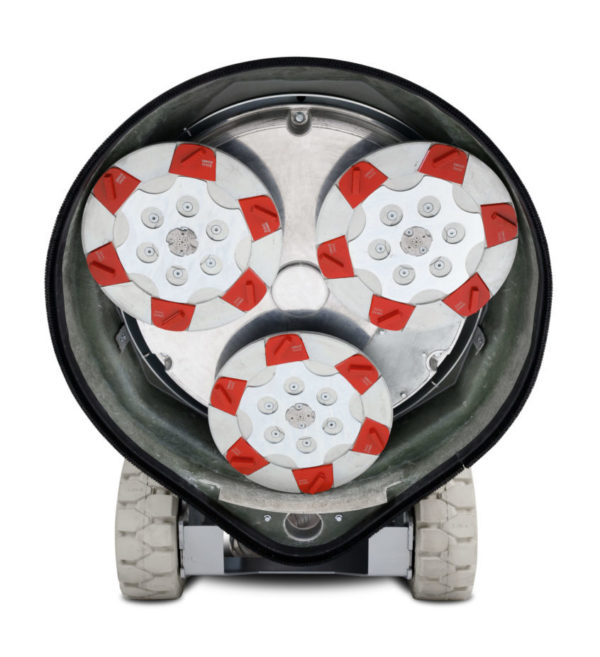

Grinding Heads: 3 x 13.2 inch  (Left Rotation)

Tool Holder RPM: 400-765

Camlock E300

Transport wheel – optional accessory

12 months with 0% interest for qualified customers on equipment purchases of $10,000 or more.

Description

NEW SEALED & DUST-PROOF GRINDING HEAD

Longer service life and less maintenance.

  • Completely redesigned chain-driven planetary drive
  • New stronger timing belt
  • Upgraded shafts, seals and bearings
  • New lighter timing pulleys for better power transmission
  •  New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance

NEW FRAME DESIGN

Better control, easier tool changes, and less vibrations.

  • New weights for faster position change
  • Redesigned frame allowing easier tool changes
  • New ergonomic handle design – faster adjustability and more positions
  • Rubber bushing used at head attachment points – less vibrations for user

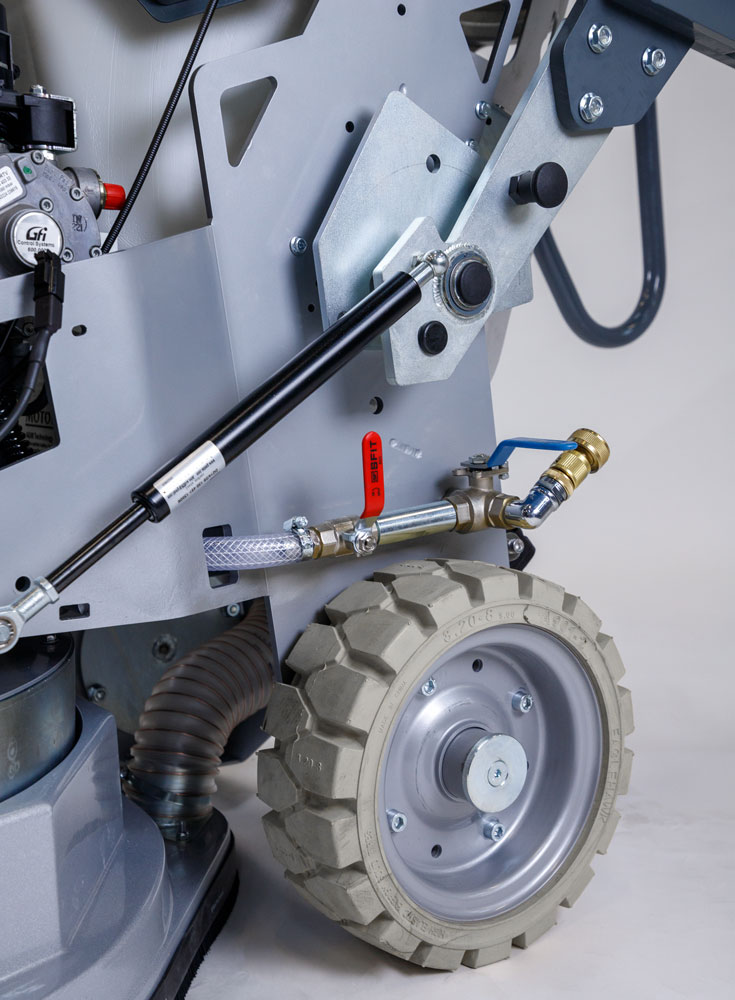

  • Water tank cap
  • Internal storage compartment

Downloads

L30S7 Spec Sheet

L30S7 Operators Guide
